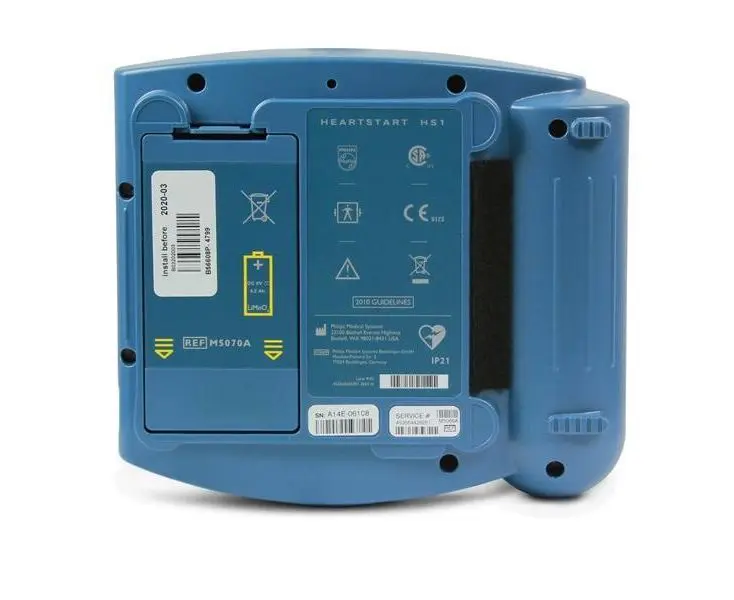

Phillips HeartStart HS1 AED Defibrillator

Phillips HeartStart HS1 AED Defibrillator Specification :-

• Weight: 3.3 lbs (1.5 kg) with battery and pads cartridge installed.
• Dimensions: 2.8 H x 7.4 W x 8.3 D (7 cm H x 19 cm W x 21 cm D).
• Battery Life: Up to 4 years in standby mode.
• Shock Delivery: Less than 8 seconds after CPR pause.
• Operating Temperature: 32 to 122F (0 to 50C).
• Storage Temperature: -4 to 140F (-20 to 60C).
• Humidity: 0% to 95% (non-condensing).
• Self-Tests: Daily, weekly, and monthly automatic self-tests.
• Pad Shelf Life: 1-2 years from the date of manufacture.
• Waveform: SMART Biphasic technology.
• Energy Output: 150 Joules for adults, 50 Joules for infants/children with the special key.
• Defibrillation peak current  Pediatric : 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge)
• Shock-to-Shock Cycle Time : Typically less than 20 seconds between shocks in a series
• Quick Shock : Able to deliver a shock after the end of a CPR interval, typically in eight seconds

Phillips HeartStart HS1 AED Defibrillator Battery Specs:

• Type : 9 Volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells
• Capacity : Minimum 200 shocks or 4 hours of operating time
• Standby life : Typically, 4 years when battery is installed and when stored and maintained as per directions
• You can buy spare battery here > Link

Phillips HeartStart HS1 AED Defibrillator SMART Pads Specs :

• Adult SMART Pads cartridge : M5071A defibrillation pads for patients over 8 years of age or 25 kg (55 lbs.) and over
• Infant/Child SMART Pads cartridge : M5072A defibrillation pads for patients 0-8 years of age and under 25 kg (55 lbs) Optional
• Active surface area : 85 cm2 (13.22) each
• Cable length : Adult SMART Pads: 137.1 cm (54) Infant/Child SMART Pads: 101.6 cm (40)

• Defibrillator
• Battery (one, pre-installed)
• SMART Adult Pads (one set, pre-installed)
• Set-up/maintenance guide with expiration date tags,
• Owners manual
