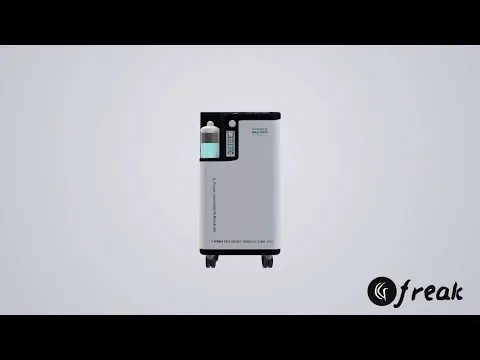

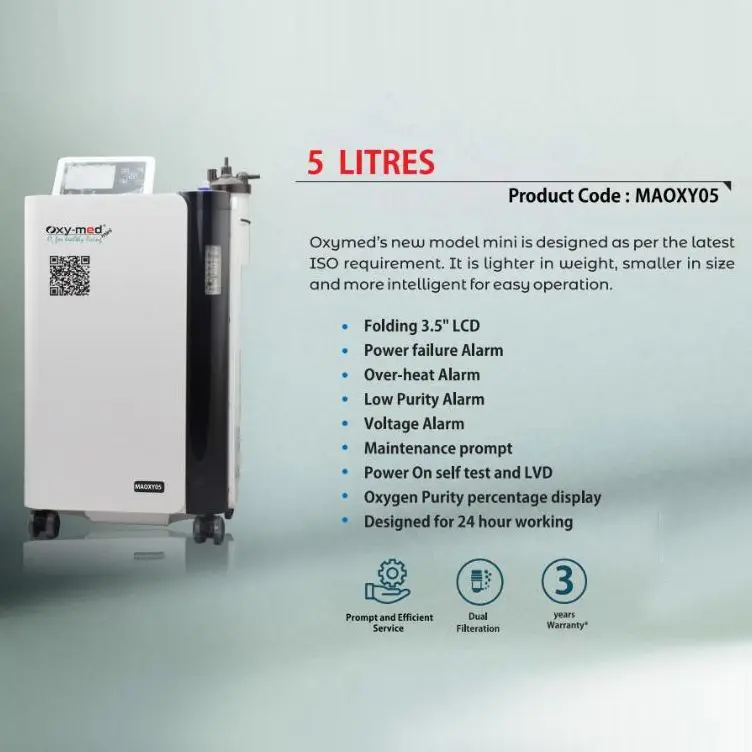

OxyMed Oxygen Concentrator Machine 5LPM Ultra Light

Product Description

OxyMed Oxygen Concentrator Machine 5LPM Ultra Light provides oxygen purity at 93% +/- 3% at 5 Litre per minute and a easy to use concentrator at home.

OxyMed Oxygen Concentrator Machine 5LPM Ultra Light Features:

• 3 Year Warranty
• Inbuilt Nebulizer
• Digital and Analog Flowmeter
• Ultra Light Weight & Compact
• Low MaintenanceGerman Technology
• Folding 3.5 Large LCD Display
• PSA (Pressure Swing Adsorption ) Technology
• Low Purity-Low Pressure alarm withSelf diagnosis when start
• HEPA filter and Bacteria filter from Italy. Five Stage filter keeps away most of Impurity, bacteria and PM (Particulate and deliver).
• Big displacement compressor ensure 30% longer life span, suitable for 24 hours continue running with service Interval Indicator.

OxyMed Oxygen Concentrator Machine 5LPM Ultra Light Specs:

Specification	Details
Oxygen Flow Rate	0.5 to 5 liters per minute (LPM)
Oxygen Concentration	93% ( 3%) at all flow rates
Sound Level	45 dB(A)
Power Consumption	350W
Operating Voltage	220-240V AC, 50 Hz
Outlet Pressure	8.5 0.5 psi
Operating Temperature Range	5C to 40C (41F to 104F)
Operating Humidity Range	Up to 95% RH
Dimensions (W x H x D)	30 cm x 56 cm x 22 cm (11.8" x 22" x 8.7")
Weight	15 kg (33 lbs)
Oxygen Purity Alarm	Audible and visual
Power Failure Alarm	Audible and visual
Filters	Compressor inlet, bacteria, and particle filters
Warranty	3 Years

*This device should be used with 1KVA stabilizer for better performance.

OxyMed Oxygen Concentrator Machine 5LPM Ultra Light FAQs

1. What is the OxyMed Oxygen Concentrator Machine 5LPM Ultra Light used for?

The OxyMed Oxygen Concentrator Machine is used to provide supplemental oxygen to individuals with respiratory conditions.

2. What is the oxygen flow rate of the OxyMed Oxygen Concentrator Machine?

The machine has an adjustable oxygen flow rate ranging from 0.5 to 5 liters per minute (LPM).

3. What is the oxygen concentration level provided by the OxyMed Oxygen Concentrator Machine?

The machine delivers oxygen with a concentration of 93% ( 3%) at all flow rates.

4. How noisy is the OxyMed Oxygen Concentrator Machine during operation?

The machine operates with a sound level of 45 dB(A), ensuring minimal disruption.

5. What are the power requirements for the OxyMed Oxygen Concentrator Machine?

The machine operates on 220-240V AC power supply at 50 Hz with a power consumption of 350W.

6. Is the OxyMed Oxygen Concentrator Machine portable?

Yes, it is designed to be ultra-lightweight and compact for easy transport and storage.

7. Does the OxyMed Oxygen Concentrator Machine have alarms for safety features?

Yes, it is equipped with audible and visual alarms for oxygen purity and power failure.

8. Are there any filters in the OxyMed Oxygen Concentrator Machine?

Yes, it has compressor inlet, bacteria, and particle filters to ensure clean and safe oxygen delivery.

9. What is the warranty period for the OxyMed Oxygen Concentrator Machine 5LPM Ultra Light?

The machine comes with a manufacturers standard warranty of 3 years which is provided onsite, providing assurance for quality and reliability.

10. Can the OxyMed Oxygen Concentrator Machine be used in different environments?

Yes, it can operate within a temperature range of 5C to 40C (41F to 104F) and up to 95% relative humidity, making it suitable for various settings.

Additional information

Warranty	3 Years

Advanced Oxygen Therapy, Simplified

The OxyMed Oxygen Concentrator delivers steady oxygen flow with the convenience of portability and automatic operation. Designed for use in hospitals and healthcare settings throughout India, its durable PVC build and standard size make it easy to transport and maintain. The one-year warranty ensures peace of mind for users and providers alike.


Reliable and Versatile Medical Solution

Operating at 220-240 volts with a 5LPM output, this concentrator fits seamlessly into diverse medical environments. Its user-friendly design and modern white-black look make it ideal for continuous oxygen supply without complex setup or manual intervention. Simple controls and automatic function allow caregivers and medical staff to focus on patient care.
